Acrylic ceiling light panels often come in standard sizes. Those sizes may not fit older fixtures, custom ceiling grids, or replacement frames.
A panel may need trimming before installation. The work appears simple, but acrylic can crack, chip, or melt when handled incorrectly.
Poor cutting can also create:
Bright edge lines
Uneven light diffusion
Visible stress marks
Rough fitting edges
Gaps inside the frame
Premature panel failure
The best method depends on the panel thickness, acrylic type, required shape, and edge visibility.
Thin panels often suit score-and-snap cutting. Thicker panels may need a fine-tooth saw. Curves and openings usually require a jigsaw or CNC router.
This guide explains how to cut acrylic ceiling light panels accurately. It covers measurement, scoring, sawing, heat control, crack prevention, edge finishing, and final fitting. The practical methods are based partly on the uploaded reference material, which recommends scoring for thin sheets and fine-tooth cutting tools for thicker acrylic.
Important: This guide applies to removable acrylic light diffusers. Do not cut the frame, LED board, wiring, driver, light guide plate, or optical layers inside a complete Ceiling Panel Light.
Note: Disconnect power before removing any diffuser from an installed light fixture.
Acrylic panels may look similar, but they do not always behave the same during cutting.
A removable plastic light diffuser is a separate cover. It spreads light and reduces direct glare.
It can usually be removed without opening the electrical system. Common examples include replacement panels used in fluorescent fixtures and ceiling grids.
A complete Ceiling Panel Light is different. It may contain:
Integrated LED modules
Aluminum framing
Internal wiring
An LED driver
A reflective layer
A light guide plate
Optical films
Do not try to resize a complete fixture. Cutting its frame or internal layers may damage its structure and light distribution.
Check the product drawing before starting. Ask the supplier when the construction is unclear.
Acrylic light diffusers use several surface types.
Acrylic type | Main feature | Cutting concern |
|---|---|---|
Clear acrylic | High transparency | Cut edges remain highly visible |
Frosted acrylic | Soft surface diffusion | Scratches may show under light |
Opal acrylic | Milky, even diffusion | Heat may discolor the edge |
Prismatic acrylic | Textured light control | Patterned edges may chip |
Clear acrylic makes edge defects easy to see. Frosted and opal sheets hide LED points, but poor cuts may still create bright lines.
Prismatic panels need careful support. Their textured surfaces may make marking and tool control more difficult.
Cast acrylic generally produces cleaner machined edges. It tends to resist melting better during controlled cutting.
Extruded acrylic is often more economical. However, it may soften faster when a saw creates excess friction.
This does not mean one type is always better. The correct choice depends on:
Project budget
Required edge quality
Panel thickness
Production volume
Tool availability
Final edge visibility
Measure the panel using a caliper. You can also check the supplier’s technical sheet.
A common practical guide is:
Panel condition | Suitable method |
|---|---|
Thin sheet and straight cut | Score and snap |
Thick sheet and straight cut | Circular saw or table saw |
Curved profile | Jigsaw or CNC router |
Repeated complex parts | CNC router |
Small notch or adjustment | Rotary tool |
Many thin acrylic diffuser sheets can be scored and snapped. Thicker material requires more controlled machining. The uploaded reference also distinguishes scoring for thin sheets from saw cutting for thicker sheets.
Note: Confirm the material and thickness before marking the final cut.
The following method is suitable for many thin acrylic replacement light panels that need a straight cut.
Measure the actual supporting frame.
Do not copy a damaged panel without checking the fixture. An old panel may be warped, undersized, or incorrectly cut.
Measure:
The width at both ends
The length on both sides
The depth of the retaining channel
The available overlap
The installation clearance
Older frames may not be square. Use the smallest reliable dimension when necessary.
The panel needs enough overlap to remain supported. It also needs enough clearance to enter the frame without bending.
When learning how to measure acrylic replacement light panels, check the frame at several points.
Place the acrylic on a clean, flat table.
Keep the protective film attached. It reduces scratches during marking and cutting.
Mark both ends of the cut line. Use a fine marker or soft pencil.
Place a metal straightedge between the marks. A framing square also helps keep the line perpendicular.
Measure again before cutting. One incorrect mark may waste the complete panel.
Support the main section fully.
For score-and-snap cutting, align the marked line near the edge of the workbench. Only the waste section should extend beyond the table.
For saw cutting, place the panel on a sacrificial plywood board.
Good support reduces:
Flexing
Vibration
Chipping
Blade movement
Stress fractures
Exit-edge breakage
Do not cut a large sheet while most of it hangs unsupported.
Place the straightedge beside the cutting line.
Use padded clamps. They protect the acrylic surface from marks.
Tighten them enough to stop movement. Do not crush the panel.
Excessive clamping pressure can create hidden stress. That stress may develop into a crack during snapping or installation.
Use a dedicated acrylic scoring tool. A sharp utility knife may work on very thin material.
Hold the tool against the straightedge. Pull it along the marked line using firm, controlled pressure.
Repeat the pass several times.
Each pass should follow the same groove. Do not try to cut through the acrylic in one movement.
A deep and consistent groove creates a reliable break line. The uploaded reference recommends repeated scoring before snapping thin acrylic along the workbench edge.
Move the scored groove directly over the table edge.
Hold the main panel flat. Apply quick and even downward pressure to the waste section.
The acrylic should separate along the groove.
Do not twist the offcut. Twisting may move the crack away from the scored line.
Stop if the fracture begins changing direction.
Check the edge for:
Chips
Sharp points
White stress lines
Rough sections
Small cracks
Uneven areas
Use fine-grit sandpaper for minor finishing. Work along the edge rather than across the visible diffuser face.
Test-fit the panel before removing more material.
Make small adjustments. Acrylic cannot be restored after too much material is removed.
Tip: Record the final dimensions when several identical replacement light panels are required.
The best tool for cutting acrylic light panels depends on the cut shape, sheet thickness, and required finish.
An acrylic scoring tool is usually the simplest choice for thin sheets.
It offers several advantages:
No motor heat
Minimal dust
Low tool cost
Good straight-line control
Easy indoor use
It works best for straight cuts. It cannot produce curves or internal openings.
Use a sharp tool. A worn scoring edge may drag across the acrylic instead of creating a clean groove.
Use a circular saw or table saw for thicker acrylic and repeated straight cuts.
Choose a sharp fine-tooth blade designed for acrylic, plastic, or laminate. A blade with many closely spaced teeth generally creates a smoother cut than a coarse wood blade.
The uploaded material recommends fine-tooth blades and full support to control chipping and heat.
For a clean saw cut:
Support the sheet fully
Set the blade slightly above the acrylic
Keep the protective film in place
Apply painter’s tape near the line
Maintain a steady feed
Avoid forcing the material
Support the offcut near the exit
Do not pause while the blade remains inside the acrylic. Stationary friction may melt the edge.
Use a jigsaw for curves, rounded corners, and irregular profiles.
Fit a fine-tooth blade intended for plastic. Avoid coarse blades that pull aggressively through the sheet.
Apply painter’s tape over the cutting area. It improves line visibility and may reduce minor chipping.
Cut slightly outside the final line. Sand back to the required shape afterward.
Do not force tight turns. They may twist the blade and crack the acrylic.
A CNC router is suitable for batch production and complex designs.
It offers:
Repeatable dimensions
Controlled curves
Accurate openings
Consistent part geometry
Efficient nesting
Reduced manual variation
Sharp, polished single-flute bits are often used for acrylic machining. Secure workholding is essential.
The finished panel should still be inspected under operating light. A dimensionally correct edge may create unwanted glow after illumination.
Note: Choose the tool according to visible edge quality, not cutting speed alone.
Cracking and melting often result from several small errors rather than one major mistake.
Allow cold acrylic to reach normal room temperature before cutting.
Cold panels may be more brittle. Sudden pressure can create long fractures.
Use sharp tools and moderate clamping pressure. Do not force the sheet through a blade.
Avoid drilling or cutting too close to an existing damaged edge.
White lines near the cut often indicate stress inside the acrylic.
Thin sheets vibrate easily.
Use a flat workbench or plywood backing board. Keep the sheet level during the complete cut.
Support the offcut as the saw approaches the end. An unsupported offcut may break away and chip the final edge.
Full support is especially important for prismatic and textured sheets.
Heat builds when the blade rubs rather than cuts.
Common causes include:
A dull blade
Incorrect tooth geometry
Very slow feeding
Excessive blade speed
Poor chip removal
Repeated passes in one place
Maintain a smooth feed rate. Let the blade cut without forcing it.
Stop if you notice smoke, melted chips, or plastic sticking to the blade. Allow the tool and panel to cool before continuing.
Problem | Likely cause | Corrective action |
|---|---|---|
Melted edge | Excess friction | Use a sharper blade and correct feed |
Large chips | Coarse blade or poor support | Change the blade and add backing |
Wave marks | Sheet vibration | Improve clamping and support |
White stress lines | Excess pressure | Reduce clamping and cutting force |
Wandering cut | Blade deflection | Slow the turn and use a suitable blade |
Bright edge glow | Over-polished or uneven edge | Use a consistent matte finish |
Tip: Test the tool, blade, and feed rate on an offcut before cutting the final diffuser.
Special profiles require more control than standard straight cuts.
Prismatic sheets have a patterned surface. The pattern controls light direction and glare.
Mark the smoother side whenever possible. Keep the textured side protected from scratches.
Use full backing support. Patterned panels may chip when they vibrate.
For a straight cut, use scoring when the sheet is thin enough. Use a fine-tooth blade for thicker prismatic acrylic.
After cutting, inspect the panel under working light. Small edge defects may become more visible after illumination.
Do not use score-and-snap cutting for curved shapes.
Use a jigsaw or CNC router. Mark the full curve before starting.
Cut slightly outside the line. Then finish the curve with fine-grit sandpaper.
Use broad curves where possible. Tight corners create more blade pressure and higher crack risk.
Mark the complete opening first.
For internal cutouts, drill starter holes near the corners. Insert the jigsaw blade through one hole.
Rounded internal corners are safer than sharp square corners. Sharp corners concentrate stress and may crack later.
Keep openings away from brittle or previously damaged edges.
Laser cutting can produce visually smooth edges on some clear acrylic.
However, opal, frosted, or textured acrylic may react differently. Heat may create:
Yellowing
Glossy edges
Burn marks
Edge glow
Local distortion
Uneven light leakage
The uploaded reference notes that illuminated diffuser sheets may reveal heat-related edge defects that are not obvious before installation.
Use laser cutting only after material testing. CNC routing is often easier to control for optical diffuser panels.
Note: Always inspect a finished sample while the light is operating.
Cutting ends when the panel fits correctly and performs well under light.
Start with fine-grit sandpaper.
Place the panel on a stable surface. Sand along the edge using even strokes.
Do not sand the visible diffuser face.
Remove all dust before installation. Loose particles may enter the fixture or create visible marks.
When learning how to smooth cut acrylic panel edges, remove only enough material to eliminate roughness.
A hidden edge does not always need polishing.
A consistent matte edge may reduce bright edge lines. It can also hide small cutting marks inside the frame.
A glossy edge may transmit more light and become highly visible.
Flame polishing can produce a clear finish, but it adds concentrated heat. It may create internal stress or distort thin material.
Mechanical sanding gives more control for replacement panels.
Do not cut the panel to an exact forced fit.
Acrylic expands and contracts as temperature changes. An overly tight frame may place pressure on the cut edges.
The panel should:
Rest securely on the trim
Enter without bending
Leave space for removal
Avoid pressure from clips
Remain flat after installation
Do not assume that every side of the frame has the same clearance.
Install the panel temporarily.
Check for:
Bright edge lines
Dark zones
Uneven diffusion
Frame gaps
Visible scratches
Distorted patterns
Misalignment with nearby panels
Make small corrections after the first test.
For batch orders, approve one illuminated sample before producing the remaining panels.
Tip: Evaluate production samples inside the actual frame and under the intended LEDs.
Knowing how to cut acrylic ceiling light panels starts with identifying the correct component.
Only cut a removable acrylic diffuser. Do not cut the frame or internal parts of a complete Ceiling Panel Light.
Use score-and-snap cutting for many thin, straight panels. Use a fine-tooth saw for thicker acrylic.
Choose a jigsaw for curves and notches. Use CNC routing when the project needs repeatable complex parts.
For every cutting method:
Measure the actual fixture.
Confirm the acrylic type.
Check the sheet thickness.
Keep the protective film attached.
Support the material fully.
Use sharp cutting tools.
Control vibration and heat.
Finish the edge carefully.
Leave suitable frame clearance.
Inspect the panel under operating light.
For repeated commercial projects, factory-sized panels may be more efficient than on-site cutting. They can reduce labor, wasted material, inconsistent edges, and installation delays.

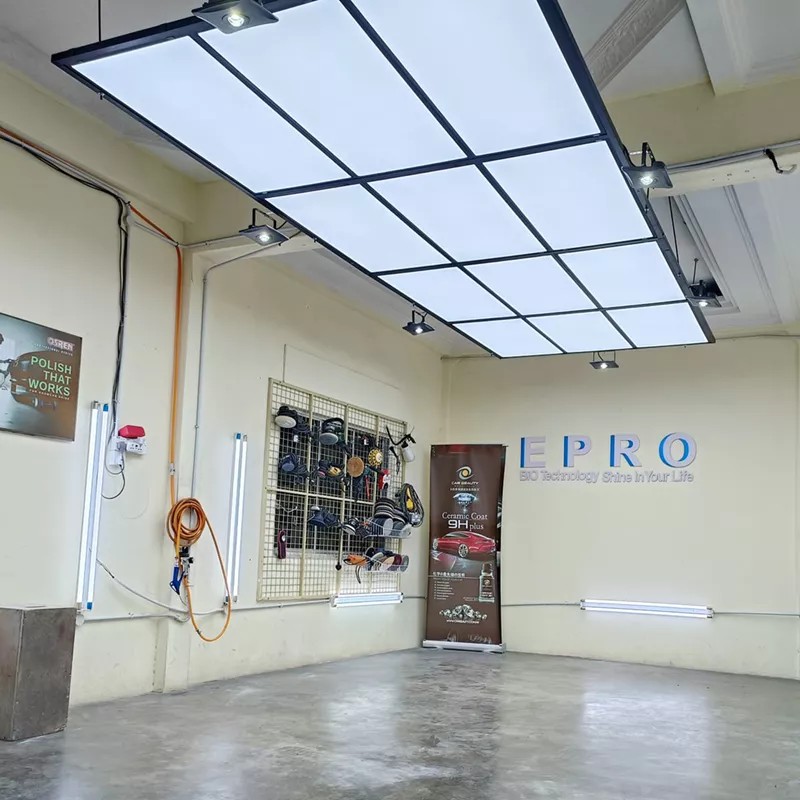

Contation LED provides panel lighting products for automotive detailing, garages, car wash areas, and other commercial workspaces. Its product information lists customized dimensions for certain panel light products, while its custom solutions service supports project-specific requirements. Buyers should confirm the finished size and construction before ordering rather than modifying a complete fixture on site.
Accurate measurement and controlled cutting help replacement light panels fit safely. They also support cleaner edges and more consistent light diffusion.
A: For thin sheets and straight cuts, an acrylic scoring tool is best. For thicker acrylic or repeated production cuts, a fine-tooth circular saw or table saw is more efficient. Use a jigsaw for curves and a CNC router for complex, repeatable shapes.
A: Use a sharp tool, support the entire panel on a flat surface, and make several light scoring passes rather than one deep cut. When sawing, use a fine-tooth blade and a steady feed rate to avoid heat buildup and vibration.
A: Measure the actual fixture opening, not the old panel. Check the width and length at several points, as frames may not be perfectly square. Also measure the overlap needed for support and leave clearance for easy installation and removal.
A: Mark the smoother side and protect the textured surface. Use full support to prevent chipping and a scoring tool for straight cuts. Always test your method on an offcut and inspect the finished edge under light, as pattern disruption can become visible.
