An LED panel ceiling light can fail for several reasons. It may flicker, dim, buzz, overheat, or stop working.
Physical damage may also affect its diffuser or frame. In other cases, the light still works, but its brightness or color no longer suits the space.
Most modern panel lights use integrated LED modules. They do not contain a standard replaceable bulb. Changing one often means replacing the full fixture or its separate LED driver.
The main challenges include:
Electrical isolation
Safe ceiling access
Mounting system identification
Ceiling wiring
LED driver compatibility
Correct replacement selection
The basic process is straightforward. First, identify the panel type. Turn off the circuit. Verify that no voltage is present. Remove the old panel, disconnect it, and install a compatible replacement.
However, electrical work carries real risk. The Electrical Safety Foundation International advises turning off the relevant circuit breaker before starting electrical work. It also recommends calling a qualified professional when a project exceeds your experience.
This article explains how to change an LED panel ceiling light safely. It covers recessed, grid-mounted, surface-mounted, and suspended designs. The practical workflow is based partly on the uploaded reference material.
Safety warning: Stop if you find damaged wiring, unidentified conductors, overheating, or an altered commercial circuit. Contact a licensed electrician.
Correct identification prevents ceiling damage and wasted work.
A standard bulb fixture has a socket. You remove the old bulb and install another one.
An integrated Ceiling Panel Light works differently. Its LEDs form part of the fixture. They may connect directly to a separate or built-in driver.
When it fails, determine which part is faulty:
The complete panel
The LED driver
A wiring connector
A dimmer or controller
The incoming power circuit
Do not open or modify sealed LED modules unless the manufacturer permits service.
Use the visible mounting details to identify the system.
Panel type | How to identify it | Common support method |
|---|---|---|
Recessed panel | Sits inside a ceiling opening | Spring clips or recessed frame |
Grid panel | Rests inside a suspended ceiling | T-bar ceiling grid |
Surface-mounted panel | Sits below a solid ceiling | Bracket, frame, or screws |

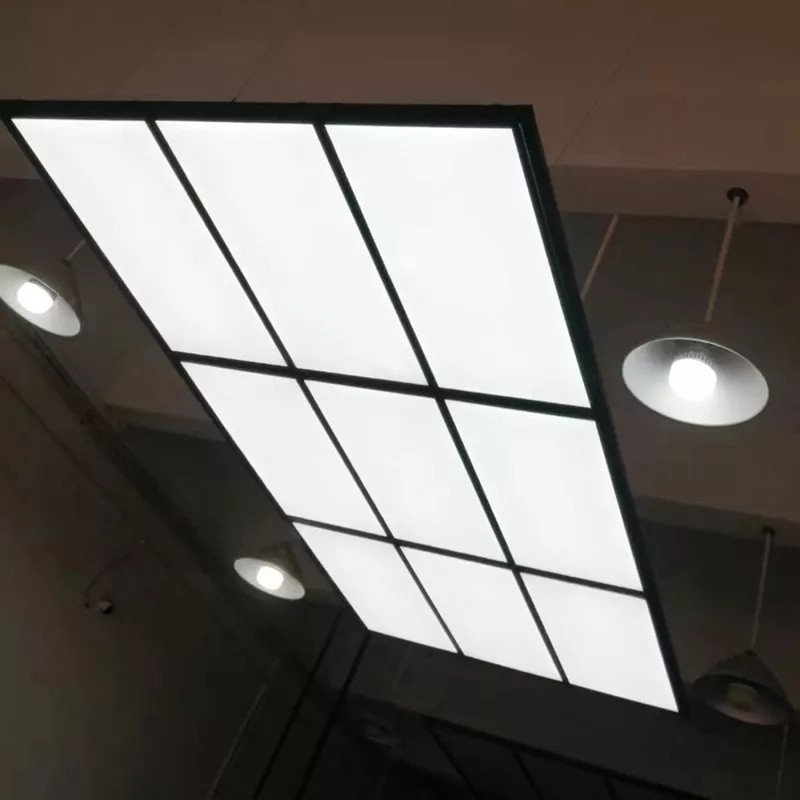

Suspended panel | Hangs below the ceiling | Cables, rods, or wire ropes |
Recessed panels often have spring-loaded mounting clips. Surface-mounted models usually use brackets or visible frames. Suspended panels rely on adjustable support cables.
A separate LED driver may sit above the ceiling. It may also rest inside a surface-mount frame.
A built-in driver remains inside the fixture housing. It may not be independently replaceable.
Read the label before selecting a new driver. Check:
Input voltage
Output voltage range
Output current
Rated power
Dimming method
Environmental rating
Never choose a driver based solely on wattage. The output current and voltage must also match the LED panel's specifications.
Note: Identifying the mounting system and driver position first reduces ceiling damage.
This section covers the main LED replacement process.
Prepare the tools before climbing the ladder.
You may need:
Stable stepladder
Non-contact voltage tester
Insulated screwdrivers
Wire strippers or cutters
Approved wire connectors
Safety glasses
Protective gloves
Drill and suitable fixings
A second person for large panels
Inspect every tool before use. Do not use cracked handles, damaged cables, or unstable ladders.
Turn off the correct lighting circuit at the main electrical panel.
Do not rely only on the wall switch. A switched-off fixture may still contain energized conductors.
Prevent other people from restoring power. In a commercial workplace, follow the site’s isolation and lockout procedure.
Use a suitable voltage tester before touching any conductor.
Test the device on a known live source first. Then check the fixture wires. Test the device again afterward.
This method helps confirm that the tester worked during the inspection.
Stop if:
The tester gives inconsistent readings
Several circuits enter the same box
Conductors cannot be identified
The wiring appears damaged
Moisture is present
Support the panel before loosening clips or screws.
Large panels can fall suddenly. They may damage ceiling tiles, wiring, or nearby equipment.
When learning how to remove an LED panel light from the ceiling, avoid pulling it by its driver cable.
Lower it slowly. Ask another person to support large commercial fixtures.
Take a clear photo before disconnecting anything.
The photo provides a reference, but it does not replace the new product’s wiring diagram.
Identify:
Incoming supply conductors
Protective ground
Driver input
Driver output
Dimmer or control leads
Release terminal screws or connectors carefully. Pull from the connector body, not the wire.
Keep disconnected conductors separated and protected.
Inspect the replacement before installation.
Confirm that the model, voltage, driver, mounting method, and physical size match the project.
Follow the manufacturer’s diagram. Use approved connectors. Keep all exposed copper inside the connector housing.
Position the LED driver where it remains:
Supported
Ventilated
Dry
Accessible when required
Free from cable strain
Then secure the panel using its intended mounting clips, bracket, frame, or ceiling grid.
Check the complete installation before restoring power.
Confirm that:
The panel is secure
The driver is supported
No cable is trapped
No conductor is exposed
Clips and screws are engaged
The panel sits level
Restore power at the breaker. Test the wall switch and dimmer.
The new panel should start normally. Its light should remain even and stable.
Watch for flickering, buzzing, delayed startup, unusual heat, or a burning smell.
Tip: Keep a photo of the original wiring and mounting position in the maintenance record.
The replacement method changes according to the ceiling structure.
To replace a recessed LED panel light safely, support it before releasing the spring clips.
Pull the trim down gently. Do not drag it across painted plasterboard.
Compress each spring clip while holding the panel. Release one side at a time.
Before installing the replacement, check:
Ceiling cutout dimensions
Panel diameter or length
Spring clip spacing
Ceiling thickness
Driver clearance
Fold the new clips upward. Guide the driver into the ceiling void. Push the panel into place evenly.
A grid panel usually rests on a T-bar frame.
Lift the old panel slightly. Tilt it above the grid. Lower it through the opening at a controlled angle.
Do not lean it against fragile ceiling tiles.
Place the replacement evenly across the supporting T-bars. Use approved safety restraints where the project or local rules require them.
A surface-mounted panel may use an outer frame or mounting plate.
Remove the decorative cover first, when present. Support the fixture while loosening its screws.
Detach the old bracket only when the new model requires another bracket.
To replace a surface-mounted LED panel light:
Mark the fixing points.
Confirm the ceiling can support the fixture.
Install the mounting bracket.
Connect the wiring and driver.
Secure the panel to the bracket.
Check that it sits flush.
Do not trap wiring between the fixture and ceiling.
Support the panel before releasing any suspension cable.
Record each cable length and mounting position. This makes the new fixture easier to level.
Check all anchors and locking devices. Replace damaged suspension parts rather than reusing them.
After mounting, use a level to confirm alignment.
Note: Two panels with similar dimensions may use completely different mounting hardware.
Physical fit is only one part of compatibility.
Measure the old panel and the ceiling opening.
For a grid system, confirm the actual ceiling module size. For recessed products, record the cutout rather than only the visible trim.
Check:
Overall dimensions
Cutout dimensions
Mounting depth
Bracket positions
Spring clip spacing
Ceiling support
Driver clearance
Use an adapter frame only when it is approved for the panel and ceiling.
Check the input rating of the complete fixture.
When changing only the LED driver, compare:
Driver specification | Why it matters |
|---|---|
Input voltage | Must suit the supply circuit |
Output current | Must match the LED module |
Output voltage | Must remain within the panel range |
Rated wattage | Must support the required load |
Dimming type | Must match the control system |
Protection rating | Must suit the installation area |
An incompatible driver may cause flickering, low output, overheating, or premature failure.
Do not compare replacements using wattage alone.
Lumens describe light output. Wattage describes power consumption.
Match the surrounding panels when replacing one unit in a larger room. Differences in brightness or color can remain highly visible.
Record:
Lumen output
Color temperature
Color rendering specification
Beam distribution
Diffuser type

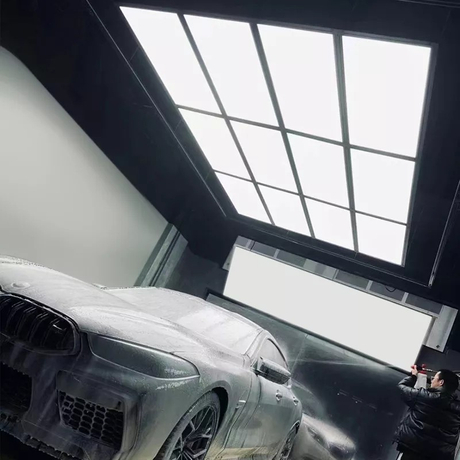

Contation LED positions its Ceiling Panel Light range for garages, car washes, and commercial or industrial settings. The company describes these products as providing uniform, glare-reduced illumination for detailed workspaces.
Not every LED panel supports dimming.
Check both the panel and its driver. Confirm which control method they use.
Possible systems include:
Phase-cut dimming
0–10V control
DALI
PWM control
Proprietary smart controls
A dimmable panel may still perform poorly with an incompatible dimmer.
Tip: For multi-panel projects, order one production specification to reduce visible color differences.
Correct wiring supports safe and stable performance.
Follow the fixture diagram and local electrical rules.
Do not rely only on wire color. Older or modified installations may use different identification methods.
Keep all conductors inside approved terminals. No bare copper should remain exposed outside a connector.
Do not combine or alter conductors unless you understand the circuit.
The LED driver converts incoming power into the output required by the panel.
Check the label on both the old and new driver.
The output current is especially important. A driver with the wrong current may damage the panel even when its wattage looks suitable.
Confirm whether the driver is:
Constant current
Constant voltage
Dimmable
Non-dimmable
Built in
Remotely mounted
Do not leave the driver hanging from its wires.
Support it inside an approved space. Keep it away from insulation or materials when the manufacturer requires ventilation clearance.
Route cables away from sharp metal edges. Use suitable protection where they pass through metal frames.
Avoid tight bends near terminals.
Inspect visible wiring before completing the panel installation.
Warning signs include:
Brittle insulation
Darkened connectors
Burn marks
Loose terminals
Melted housings
Corrosion
Unusual heat
Burning odors
Flickering lights, dimming, discoloration, and warm electrical components can indicate a serious wiring problem.
Note: A correctly sized panel may still fail when its driver or dimmer is incompatible.
Always isolate power again before opening the fixture.
Problem | Possible cause | First check |
|---|---|---|
Panel does not turn on | No supply or loose connector | Breaker, switch, and driver input |
Panel flickers | Loose wiring or dimmer mismatch | Connectors and driver compatibility |
Panel appears dim | Wrong driver or low lumen output | Driver label and panel rating |
Panel buzzes | Driver or dimmer issue | Control system compatibility |
Breaker trips | Fault or incorrect wiring | Stop and call an electrician |
Check the breaker and wall switch first.
Turn the power off again. Inspect the driver input and low-voltage panel connector.
Confirm that every plug is fully seated. Check the manufacturer’s diagram.
Do not repeatedly reset a tripping breaker.
Flickering often comes from loose connections, an unstable driver, or an incompatible dimmer.
Check one factor at a time.
Start with the connectors. Then confirm the driver specification. Finally, check the dimmer and control circuit.
Compare its lumen output with nearby panels.
Check whether the replacement uses the correct driver. Inspect the diffuser and optical surface for shipping damage.
Uneven output may also indicate an internal panel defect.
A faint buzz may come from the driver or dimmer.
Confirm that both parts support the same control method. Ensure the driver does not vibrate against the ceiling frame.
Replace damaged or unsuitable components.
Tip: Change one variable at a time during troubleshooting to identify the real fault.
A wall switch does not provide safe circuit isolation.
Turn off the breaker. Then verify the conductors using a suitable tester.
Do not select an LED replacement based only on visible size.
Match:
Voltage
Driver output
Mounting method
Dimming type
Lumen output
Color temperature
Environmental rating
Support the panel throughout removal.
Release mounting clips slowly. Do not pull the fixture from the ceiling by its cables.
Keep tools away from fragile ceiling tile edges.
Call a licensed electrician when the project involves:
Unidentified wiring
Damaged insulation
Repeated breaker trips
Emergency lighting
Multi-panel commercial circuits
New circuit installation
High or restricted ceilings
Signs of overheating
Persistent flickering
Water exposure
Electrical controls and lighting upgrades should also be checked for compatibility by a qualified professional.
Note: Stop immediately when a breaker trips or any component becomes unusually hot.
Inspect the new installation from the floor and ladder.
Confirm that:
The panel sits level
The trim remains flush
All screws are secure
Spring clips are engaged
Suspension cables are locked
No wires remain exposed
The driver is supported
The panel operates without flicker
Test each switch, dimmer, and lighting zone.
A maintenance record is valuable in commercial projects.
Record:
Product model
Panel dimensions
Input voltage
Wattage
Lumen output
Color temperature
Driver model
Dimming type
Installation date
Warranty period
Supplier batch
This information makes future LED replacement faster.
Watch the new panel during its first weeks of service.
Early warning signs include:
Delayed startup
Intermittent flicker
Color shift
Buzzing
Uneven brightness
Excess heat
Connector discoloration
Investigate these issues before they affect nearby fixtures.
For B2B projects, Contation LED’s panel products are intended for commercial environments such as detailing areas, car wash facilities, and showrooms. Its product pages also describe ceiling mounting options for modular lighting systems.
Tip: Keep replacement data by site, room, panel type, and installation batch.
Knowing how to change an LED panel ceiling light starts with correct identification.
Determine whether the fixture is recessed, grid-mounted, surface-mounted, or suspended. Check whether its driver is built in or separate.
Then follow the correct sequence:
Turn off the circuit.
Verify that no voltage is present.
Support and remove the old panel.
Photograph the original setup.
Disconnect the wiring carefully.
Check the replacement specifications.
Install the new panel and driver.
Secure all mounting hardware.
Restore power and test the light.
Record the final product details.
A safe panel installation depends on more than physical size. Voltage, driver output, dimming, mounting hardware, brightness, and color temperature must also match.
Do not rush the electrical isolation stage. It is more important than installation speed.
For commercial projects, standardizing the Ceiling Panel Light specification can simplify future maintenance. It also helps maintain consistent illumination across the site.
Contation LED offers ceiling panel lighting for automotive detailing, car wash, garage, showroom, and other commercial applications. Buyers should confirm the required size, mounting system, electrical specification, and control method before placing a project order.
A: It usually means replacing the fixture or LED driver, not a bulb.
A: Turn off the breaker, verify with a voltage tester, then release mounting clips.
A: Match the ceiling wiring, driver, size, and mounting system before installation.
A: Replacing the LED driver may cost less, but full replacement is safer when the panel is damaged.
A: Check loose wiring, dimmer compatibility, and the LED driver.
A: Measure the actual ceiling cutout or the T-bar grid opening, not the old panel, as it may be warped. For recessed lights, measure the hole in the ceiling. For grid lights, measure the opening between the T-bars. Always confirm the depth and clearance for the driver as well.
