A ceiling panel light can fail in several ways. It may stop working, flicker, appear dim, buzz, or develop dark areas.
Some panels also start slowly. Others become unusually hot or produce a burning smell.
These symptoms do not always mean the complete fixture has failed. The problem may come from:
A tripped breaker
A damaged wall switch
Loose wiring
An incompatible dimmer
A faulty LED driver
A disconnected panel plug
Internal LED module damage
Poor heat dissipation
Correct diagnosis matters. It prevents unnecessary panel replacement and reduces repair time.
This guide explains how to fix an LED panel light in the ceiling using a safe troubleshooting sequence. It covers power checks, visible wiring, driver failure, mounting problems, and post-repair testing.
Some external faults may be simple to correct. Sealed electronic components are different. They often require professional repair or complete fixture replacement.
Safety warning: Turn off the correct breaker before removing the panel. Do not rely only on the wall switch.
Do not attempt a DIY repair when you find:
Damaged or unidentified ceiling wiring
Repeated breaker trips
Burn marks or melted parts
Water inside the fixture
Emergency lighting circuits
Sealed internal LED boards
High commercial ceilings
Several circuits inside one junction box
A licensed electrician should assess these conditions.
A systematic process makes LED troubleshooting safer. It also helps isolate the real fault.
Switch off the relevant lighting circuit at the breaker.
Do not assume the circuit is safe because the wall switch is off. Some fixtures may still contain live conductors.
Use a suitable voltage tester to confirm that no voltage is present. Test all accessible supply conductors before touching terminals or connectors.
Some LED drivers contain capacitors. They may retain stored energy after the supply is isolated.
Wait several minutes before handling the driver. Do not open its enclosure unless the manufacturer permits servicing.
For commercial sites, follow the building’s lockout procedure. Prevent another person from restoring power during the repair.
Observe the panel before removing it.
Common symptoms include:
Symptom | Likely areas to inspect |
|---|---|
No light | Breaker, switch, wiring, driver |
Intermittent output | Loose wiring or driver connector |
Continuous flickering | Driver, dimmer, voltage supply |
Low brightness | Driver output or LED module |
Dark areas | Internal LED or optical failure |
Buzzing | Driver or dimmer incompatibility |
Excess heat | Driver overload or poor ventilation |
Burning smell | Wiring or component damage |
Use the symptom to choose the first inspection point.
For example, several panels flickering together may indicate a supply or control issue. One dark panel among many often points to a local driver or fixture fault.
Start outside the fixture.
Check whether the breaker has tripped. Do not reset it repeatedly if it trips again.
Test whether other lights on the same circuit operate normally. This helps separate a local panel fault from a building circuit issue.
Inspect the wall switch or dimmer for:
Heat damage
Loose mounting
Buzzing
Delayed response
Visible discoloration
An incompatible dimmer can cause flickering, buzzing, or unstable low-level output.
Stop when the problem appears to involve the building supply. That work requires qualified testing.
Identify the panel’s mounting method before removal.
It may be:
Recessed
Grid-mounted
Surface-mounted
Suspended
Support the fixture before releasing any mounting clips, screws, or brackets.
Lower it slowly. Do not pull the panel down by its cables.
Large panels can damage ceiling tiles or wiring if they drop suddenly. Ask another person to support commercial-size fixtures.
Take clear photos of:
Wire positions
Driver connections
Mounting clips
Bracket orientation
Cable routing
These photos provide a useful reference during reassembly.
Loose wiring can cause flickering, buzzing, dim output, or total failure.
Inspect accessible:
Wire connectors
Terminal blocks
Driver plugs
Cable insulation
Ground connections
Low-voltage panel leads
Look for discoloration, melted plastic, loose conductors, or damaged insulation.
A loose approved connector may be tightened or replaced by a qualified person. Do not reuse burnt or deformed components.
Never twist damaged conductors together as a temporary repair. Use connectors suitable for the conductor type and circuit rating.
When learning how to repair loose LED panel light wiring, remember that the complete circuit should still be checked. A loose connection may be the result of heat, vibration, or incorrect installation.
The LED driver regulates the power supplied to the panel.
Driver failure is a common cause of:
No light output
Repeated flashing
Delayed startup
Low brightness
Buzzing
Excessive heat
Intermittent operation
Check the driver label before testing or replacement.
Record:
Input voltage
Output voltage range
Output current
Rated wattage
Dimming method
Constant-current or constant-voltage type
Do not replace a driver based only on physical size or wattage.
The output current and voltage range must match the LED module. An incorrect driver may damage the panel or create unstable operation.
Live output testing should be completed only by a qualified person using suitable equipment.
After the repair, secure every connector and enclosure.
Position the driver so it remains:
Supported
Ventilated
Dry
Accessible when required
Free from cable strain
Keep wires away from sharp metal edges. Do not trap them between the panel and ceiling.
Refit the fixture using its original mounting system.
Before restoring power, confirm that:
All connectors are secure
No copper is exposed
The driver cover is closed
Mounting clips are engaged
The panel sits level
No cable is under tension
Restore power and test the light.
Check for stable brightness, low noise, normal temperature, and even illumination.
Turn the circuit off again if the fault remains.
Tip: Store wiring photos and driver specifications in the site maintenance record.
When a panel does not turn on, begin with the breaker and wall switch.
Then inspect the driver input and low-voltage output connector.
A loose plug between the driver and panel can stop the fixture completely. Push-fit connectors should be fully seated and locked.
If power reaches the driver but the panel remains off, the driver may have failed. Internal LED damage is also possible.
Do not replace the complete panel before checking the external supply and connectors.
Flickering often comes from unstable current.
Possible causes include:
Loose wiring
Faulty driver
Incompatible dimmer
Poor connector contact
Unstable supply voltage
Overheating
Internal LED failure
Check whether one panel or several panels flicker.
If several fixtures show the same issue, inspect the common dimmer, control circuit, or power supply.
When only one panel flickers, check its connectors and driver first.
Do not keep operating a fixture that flickers and becomes hot.
A dim panel may still receive power, but its output is below the expected level.
Possible reasons include:
Dust on the diffuser
Yellowed optical material
Reduced driver output
Incorrect replacement driver
Voltage drop
Aging LED modules
Heat-related damage
Compare the panel with a nearby fixture using the same specification.
If the light is evenly dim, inspect the driver and supply. If it has dark zones, the internal LED board or optical system may be damaged.
Cleaning may restore output when dirt is the cause. It will not repair electrical or optical degradation.
Buzzing usually comes from the driver or dimmer.
First, check whether the sound changes when the brightness level changes. If it does, dimmer compatibility may be the problem.
The driver may also vibrate against the frame or ceiling structure.
Turn off the circuit. Inspect the driver mounting and connector security.
Do not pad a hot driver using foam or insulation. This may block ventilation.
Replace a damaged or incompatible driver with a properly matched model.
Turn off the circuit immediately.
Do not continue testing a panel that produces a burning smell.
Inspect the visible driver, connectors, and cable insulation for:
Darkened plastic
Melted terminals
Swelling
Burn marks
Brittle wiring
Heat deformation
Possible causes include driver overload, incorrect voltage, blocked ventilation, poor connections, or internal failure.
Replace damaged parts or the complete panel. Do not attempt to reuse heat-damaged components.
Note: Heat damage often indicates more than a simple connection problem.
Locate the driver label before disconnecting it.
A typical label lists:
Specification | Why it matters |
|---|---|
Input voltage | Must match the building supply |
Output voltage | Must suit the LED load |
Output current | Controls LED operating current |
Rated wattage | Must support the panel load |
Driver type | Constant-current or constant-voltage |
Dimming method | Must match the controller |
Photograph the label for future comparison.
A driver with matching wattage but incorrect output current is not a safe substitute.
Common driver failure signs include:
No output
Repeated flashing
Delayed startup
Gradual dimming
Buzzing or humming
Excessive temperature
Visible discoloration
Burnt odor
A failing driver may work when cold and stop after warming up.
This pattern often points to thermal or internal component failure.
A known-compatible driver can help isolate the fault.
However, every electrical value must match before the test.
Check:
Output current
Output voltage range
Power rating
Dimming protocol
Connector polarity
Environmental rating
Do not connect a random spare driver.
Qualified technicians may use controlled voltage testing or a compatible test driver. Untrained users should avoid live measurements.
First, isolate the circuit and verify that it is safe.
Disconnect the old driver by holding the connector body. Do not pull directly on the wires.
Install the replacement according to the manufacturer’s diagram.
Keep the driver ventilated. Do not place it under tension or cover it using insulation unless the product permits it.
Secure all input and output connectors.
Reassemble the panel before restoring power.
Test the fixture for at least several minutes. Watch for flicker, noise, low output, or rising temperature.
Note: An incompatible driver can cause early LED failure even when the panel initially lights.
Pull the panel down carefully to expose its spring clips.
Support the panel while compressing each clip. Release one side at a time.
Inspect:
Spring tension
Ceiling cutout
Plasterboard damage
Driver clearance
Cable position
Replace distorted clips. Do not force them into a damaged ceiling opening.
Keep the driver and wiring clear when pushing the panel back into place.
Lift the panel slightly above the T-bar grid.
Tilt it and lower it through the opening.
Check whether the grid remains level and supports all sides of the fixture. A damaged grid can cause sagging or pressure on the panel frame.
Inspect safety cables and wiring above the ceiling.
Correct grid alignment before reinstalling the panel.
Remove the outer frame or cover when present.
Support the panel before loosening mounting screws.
Inspect:
Mounting bracket
Ceiling anchors
Driver space
Cable routing
Frame alignment
Replace damaged brackets or anchors. Do not rely on loose mounting points.
Confirm that no cable becomes trapped when the panel is reattached.

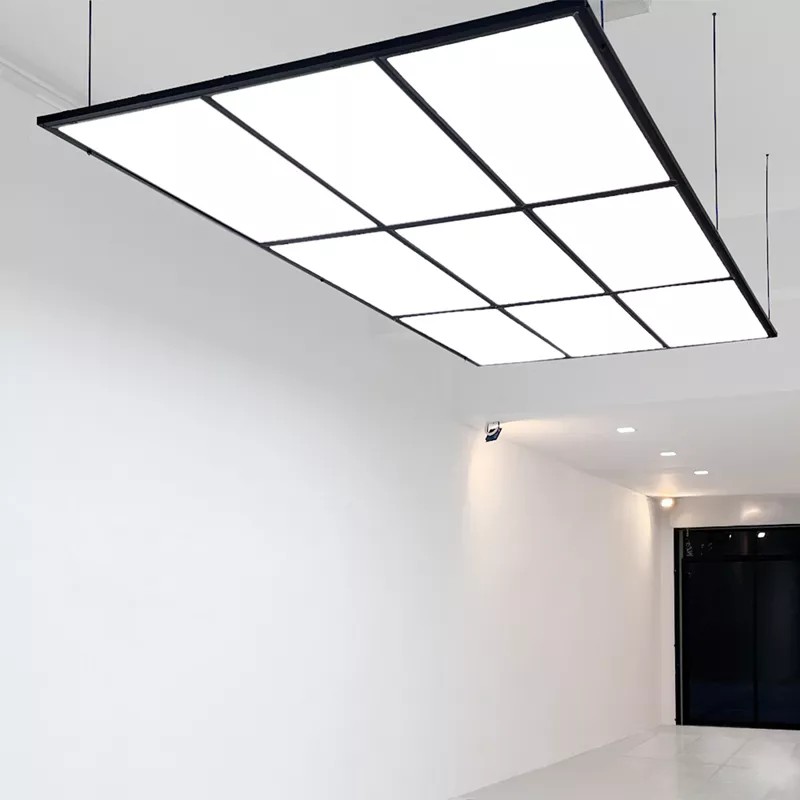

Support the panel before releasing suspension cables.
Inspect the ceiling anchors, cable locks, and electrical lead.
Replace worn suspension hardware. Do not repair damaged cables using temporary knots or clamps.
Re-level the panel after the electrical repair.
Note: Similar-looking panels may require different mounting clips and drivers.
A wiring repair may solve the problem when you find:
A loose connector
A disconnected driver plug
A damaged external terminal
Cable strain near the mounting frame
The repair should use approved components.
Inspect the rest of the circuit before returning the panel to service.
Driver replacement may be practical when:
The panel remains physically intact
No LED section appears dark
The diffuser and optical layers are undamaged
The driver shows clear failure symptoms
A fully compatible driver is available
Repair labor remains reasonable
A compatible driver can extend the useful life of the panel.
For B2B projects, keep driver records by fixture model. Do not maintain one general spare for unrelated panels.
Replace the complete fixture when:
Several LED sections have failed
Optical layers are damaged
The frame is warped
Water entered the fixture
Parts show heat damage
A compatible driver is unavailable
The panel lacks reliable documentation
Repair costs approach replacement costs
Sealed fixtures are often difficult to repair safely.
Replacing them may provide more reliable long-term performance.
The price of a driver is only one repair cost.
Commercial buyers should also consider:
Technician labor
Access equipment
Spare-part availability
Business downtime
Testing time
Warranty impact
Remaining fixture life
Risk of repeated failure
Batch replacement may make sense when many panels of the same age show similar faults.
Standardizing the panel and driver models across one site can simplify future maintenance.
Tip: Compare total service cost against the expected remaining fixture life.
Turn off the circuit again.
Recheck:
Incoming supply
Driver input
Driver output connector
Panel plug
Replacement driver ratings
A new driver will not solve an internal LED board failure.
Escalate the repair when external checks are normal but the panel remains dark.
Check every connector for full engagement.
Confirm that the driver and dimmer use compatible control methods.
Compare the affected fixture with nearby panels. Several flickering units may indicate a shared supply problem.
Replace mismatched or poor-quality control components.
Turn it off immediately.
Check whether the replacement driver matches the original output current.
Inspect the ventilation space. Make sure cables, insulation, or ceiling materials do not trap heat.
Do not continue operating a fixture whose temperature keeps increasing.
Do not reset the breaker repeatedly.
Isolate the panel from the circuit.
Possible causes include:
Incorrect wiring
Damaged insulation
Short circuit
Faulty driver
Pinched cable
Water entry
Contact a licensed electrician.
Note: Repeated breaker trips indicate a circuit fault, not a normal panel problem.
Dust can reduce light output and block ventilation.
Use a soft, dry cloth on the panel surface.
Do not spray liquid directly onto the fixture.

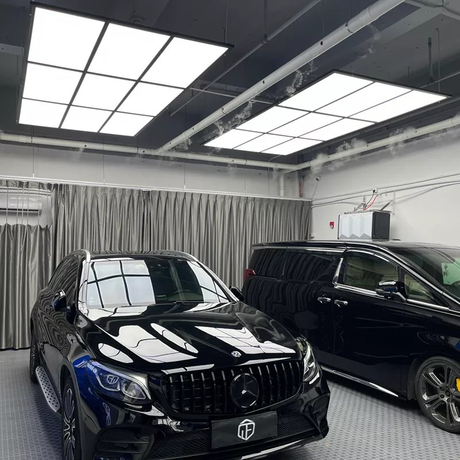

Increase cleaning frequency in garages, workshops, car wash areas, and other dusty spaces.
Keep the driver away from water entry points.
Maintain the ventilation clearance required by the manufacturer.
Use fixtures and drivers with suitable environmental ratings.
Do not cover the driver using ceiling insulation unless the product permits it.
During maintenance, check:
Connectors
Mounting clips
Brackets
Suspension cables
Cable insulation
Driver enclosures
Ceiling anchors
Loose mechanical parts may pull on wiring and create future failures.
Correct small mounting issues before they damage the electrical connection.
Create a record for each lighting zone.
Include:
Panel model
Driver specification
Installation date
Warranty details
Repair history
Failure symptoms
Replacement date
Product batch
This data can reveal repeated problems linked to one circuit, product batch, or installation area.
For commercial projects, buyers can also consult Contation LED to confirm panel specifications, driver compatibility, mounting systems, and suitable replacement options before ordering.
Tip: Keep one approved fixture specification for each commercial lighting zone.
Knowing how to fix an LED panel light in the ceiling begins with safe diagnosis.
Use this sequence:
Turn off the breaker.
Verify that no voltage is present.
Identify the fault symptom.
Check the switch and supply.
Remove the panel safely.
Inspect connectors and visible wiring.
Check the LED driver specification.
Repair only approved external components.
Reinstall the panel securely.
Test brightness, noise, and temperature.
Loose wiring and driver failure can often be corrected without replacing the complete fixture.
However, burnt, water-damaged, warped, or internally failed panels should normally be replaced.
Do not open sealed electrical or optical assemblies without manufacturer approval.
Use professional support for damaged ceiling wiring, commercial circuits, persistent flickering, overheating, or repeated breaker trips.
A systematic approach reduces wasted parts. It also helps restore stable, safe, and even illumination.
A: Start by checking the circuit breaker and wall switch. If they are fine, the issue is likely a loose wiring connection, a faulty LED driver, or a failed internal LED module. Inspect connectors and driver output before replacing the entire fixture.
A: Flickering is often caused by loose wiring, an incompatible dimmer, or a failing driver. First, secure all connectors. Then check if the dimmer matches the driver's control method. If the problem persists, the driver may need replacement.
A: First, check the driver's label for input/output voltage and current ratings. A qualified technician can then use a multimeter to verify if the output matches these specifications. Live testing should only be performed by trained personnel.
A: Yes, if the panel's LED modules and optical layers are undamaged and a compatible driver is available. Driver replacement can extend the panel's life at a fraction of the cost of a new fixture.
A: Replace the complete fixture if there is water damage, burn marks, a warped frame, multiple dark LED zones, or if a compatible replacement driver is unavailable. These issues often make repair unsafe or uneconomical.
