Ceiling light panels often come in standard sizes. However, older fixtures and suspended ceiling grids may use different dimensions.
A replacement panel may therefore need trimming before installation. The work looks simple, but thin plastic can crack, chip, or melt when handled incorrectly.
The correct cutting method depends on four main factors:
Panel material
Panel thickness
Required cut shape
Available tools
For thin acrylic panels and straight cuts, scoring and snapping is usually the safest method. A fine-tooth saw may be more practical for thicker panels, curved edges, or repeated production cuts.
This guide explains how to cut ceiling light panels safely. It covers measurement, tool selection, crack prevention, edge finishing, and final fitting.
Important: This guide applies only to removable acrylic, polycarbonate, or plastic diffuser panels. Do not cut the aluminum frame, LED board, wiring, driver, light guide plate, or other integrated parts of a complete LED Ceiling Panel Light.
Commercial buyers should confirm available dimensions before ordering complete fixtures. For larger projects, ordering the correct size is usually safer than modifying finished electrical products on site.
Contation LED supplies complete ceiling panel lighting systems for garages, car washes, workshops, and other commercial or industrial spaces. Its website also lists project-based customization options covering product size, shape, power, and specification.
Note: Always disconnect the power before removing a diffuser from an existing fixture.
Before selecting a tool, confirm what you are cutting.
A ceiling lighting system may contain several layers:
Removable plastic diffuser
Acrylic or polycarbonate cover
Light guide plate
Reflective sheet
LED circuit board
Aluminum frame
Power driver and wiring
In most cases, only a separate replacement diffuser or plastic cover should be trimmed.
A removable light diffuser is a non-electrical cover placed below the light source. It spreads the light and reduces harsh glare.
These light diffusers are often made from acrylic, polycarbonate, or polystyrene. Some are smooth. Others have prismatic, dimpled, or textured surfaces.
A separate diffuser can often be cut to size when the supplier permits it.
A complete Ceiling Panel Light is different from a loose plastic cover.
It may contain integrated LEDs, electrical wiring, a driver, an optical plate, and a structural frame. Cutting any of these parts may damage the fixture or create an electrical and mechanical safety risk.
Do not assume that a complete LED panel can be resized like an acrylic sheet.
When a project uses non-standard dimensions, ask the supplier whether custom production is available.
Contation LED states that its customization services can cover different shapes, power levels, sizes, materials, and branding requirements. Buyers can review drawings and samples before mass production.
For bulk projects, this approach may reduce:
On-site cutting time
Material waste
Installation errors
Inconsistent dimensions
Damage to finished fixtures
Tip: Send the supplier accurate ceiling drawings before placing a bulk order.
The following method is suitable for many thin acrylic replacement panels that need a straight cut.
Measure the actual fixture opening first. Do not rely only on the old panel.
Damaged replacement panels may be warped, cracked, or incorrectly sized. Older ceiling grids may also be slightly uneven.
Measure:
The width at both ends
The length on both sides
The depth of the supporting trim
The available installation clearance
Use the smallest reliable measurement when the opening is not perfectly square.
A small overlap allows the replacement panel to rest securely inside the trim. However, too much overlap may make the panel difficult to insert or remove.
Place the new panel on a clean, flat work surface.
Keep the protective film attached when possible. It helps prevent scratches during measurement and cutting.
Mark both ends of the cutting line using:
A fine-tip marker
A soft pencil
Masking tape
A metal straightedge
Connect the marks with the straightedge. Check that the line remains parallel to the original panel edge.
Measure the line again before cutting. One incorrect mark may waste the full panel.
Many acrylic panels have two different surfaces.
One side may be smooth. The other may have a prismatic, dimpled, or decorative pattern.
For many acrylic light diffuser panels, the smooth side is easier to mark and score. The textured side can face downward while the panel rests on the table. This arrangement helps improve tool control and protects the visible pattern.
However, panel construction varies. Follow the manufacturer’s instructions when they specify another cutting direction.
Align the cutting line near the edge of the workbench.
Support the larger section of the panel completely. Only the narrow waste section should extend beyond the edge.
Place the straightedge over the marked line. Secure it using clamps.
Use soft pads beneath each clamp. They help prevent pressure marks and surface damage.
Do not overtighten the clamps. Excess pressure may create a crack before cutting begins.
Use an acrylic scoring tool for the best control. A sharp utility knife may also work on thin material.
Hold the tool firmly against the metal straightedge. Pull it along the cutting line using steady pressure.
Make several light passes.
Do not try to cut through the panel in one movement. One deep pass may cause the blade to slip or leave the marked line.
Each pass should follow the same groove. The groove must become deep enough to guide the final break.
Move the scored line directly over the table edge.
Hold the main panel flat against the work surface. Apply controlled downward pressure to the waste section.
Start at one end. Continue the pressure gradually across the line.
The panel should separate along the groove. Stop immediately if the crack begins moving away from the scored line.
Inspect the edge for:
Sharp corners
Small chips
Uneven sections
Loose fragments
Stress cracks
Use fine-grit sandpaper to remove minor roughness. Sand slowly and avoid touching the visible face of the diffuser.
Test-fit the panel inside the fixture before making further cuts.
Remove only a small amount of material at one time. Material cannot be added back after trimming.
Tip: For repeat installations, record the finished dimensions for every fixture model.
The best tool for cutting light diffuser panels depends on thickness, material, shape, and project volume.
Tool | Best application | Main advantage | Main limitation |
|---|---|---|---|
Acrylic scoring tool | Thin acrylic and straight cuts | Clean cut without heat | Cannot produce curves |
Utility knife | Thin plastic and light trimming | Low cost and easy access | Greater risk of slipping |
Fine-tooth circular saw | Thick panels and long cuts | Faster cutting | May chip or melt plastic |
Table saw | Repeated straight production cuts | Consistent dimensions | Requires careful support |
Scroll saw | Curves and irregular profiles | Better shape control | May leave a rough edge |
Rotary tool | Notches and small adjustments | Flexible in tight areas | Generates heat quickly |
A dedicated scoring tool is usually the best choice for thin acrylic panels.
It produces a controlled groove without creating sawdust or significant heat. It is well suited to indoor replacement work and single-panel projects.
Use it for straight cuts only. It is not suitable for rounded corners or internal openings.
A utility knife can be used when a scoring tool is unavailable.
The blade must be sharp. A dull blade requires more pressure and may slip across the surface.
Use a rigid metal straightedge. Make several controlled passes instead of forcing the blade through the plastic.
Replace the blade before starting a large project.
A power saw may be more efficient when the panel is thick or when several panels require the same cut.
Use a clean, fine-tooth blade intended for plastic or laminate. A blade with coarse teeth may catch the edge and crack the panel.
Place the panel over a plywood backing sheet. Masking tape can also help stabilize the cutting area.
Feed the panel slowly. Stop if the edge begins to smoke, soften, or stick to the blade. These signs indicate excessive heat.
Use a scroll saw for curves, rounded corners, and irregular profiles.
A rotary tool works well for:
Small notches
Minor corrections
Tight corners
Short internal cuts
Both tools can generate heat. Use moderate speed and light pressure.
Note: Test the selected tool on an offcut before cutting the final panel.
Acrylic panels usually crack because of poor support, excess pressure, a dull blade, or uncontrolled vibration.
Unsupported plastic bends during cutting. This movement creates stress around the cutting line.
Place the panel on a flat workbench or plywood sheet. Keep the main section supported at all times.
Only a small waste section should hang beyond the table edge.
Apply masking tape over or beside the cutting line.
The tape provides a clearer marking surface. It may also reduce minor chipping during saw cuts.
Draw the cutting line directly on the tape. Remove the tape slowly after the work is complete.
Pull it back at a low angle to protect the panel surface.
Do not use heavy pressure during the first scoring pass.
Heavy pressure may cause:
Blade movement
Surface scratches
Stress fractures
Uneven grooves
Sudden breakage
Build the score line through several steady passes.
This method takes longer, but it gives you more control.
Dull tools create extra resistance.
A dull utility knife may slip. A worn saw blade may produce heat, vibration, and rough edges.
Inspect the blade before every job. Replace it when the teeth or cutting edge show visible wear.
Acrylic can soften when friction creates too much heat.
When using a saw:
Use the correct blade
Maintain a steady feed speed
Do not force the plastic
Pause if the edge begins melting
Allow the blade and panel to cool
A slow cut is not always better if the blade remains in one place for too long. Maintain smooth and controlled movement.
Tip: For production cutting, inspect the blade between batches rather than waiting for cut quality to decline.
Different panel materials need different handling.
Use the score-and-snap method for thin rectangular acrylic panels.
It creates little dust and avoids heat from power tools. It is usually the easiest way to cut acrylic light panels to size.
This method works best for long, straight cuts.
Repeated scoring may become inefficient on thicker material.
Use a fine-tooth saw when the panel is too rigid to snap safely. Support the panel fully and use a controlled feed speed.
Do not push it through the blade.
Prismatic panels have a patterned surface designed to spread light.
The pattern can make accurate marking more difficult. It may also affect how the tool rests on the surface.
When learning how to cut prismatic light panels:
Identify the smooth side
Keep the pattern protected
Mark the line clearly
Test an offcut first
Use full panel support
Avoid dragging tools across the decorative face.
Acrylic is rigid and clear, but it can be brittle.
Polycarbonate generally tolerates impact and bending better. However, it may not snap as cleanly as thin acrylic.
Do not identify material by appearance alone. Check the packaging, technical sheet, or supplier information.
Do not use these methods to resize an integrated LED fixture.
A complete unit may contain electrical and optical components positioned close to the edge. Cutting it may damage the LEDs, wiring, frame, driver, or internal light distribution system.
For a non-standard commercial space, request a suitable product size or project-specific configuration before ordering.
Contation LED’s Ceiling Panel Light category includes lighting intended for garages, car washes, workshops, and other commercial or industrial environments. Its customization page states that shape, size, power, specifications, and branding may be adjusted according to project requirements.
Note: Confirm customization availability for the exact model before placing an order.
Use a metal straightedge, clamps, and scoring tool for clean rectangular resizing.
Measure the distance from the original panel edge at several points. This confirms that the cutting line is straight and parallel.
Use a saw only when the material is too thick for safe scoring.
Do not use score-and-snap cutting for curves.
The crack may continue beyond the marked shape.
Use a scroll saw or rotary tool instead. Cut slightly outside the final line, then finish the curve gradually.
Smooth the edge using fine-grit sandpaper.
Rounded corners reduce concentrated stress.
Use a template to mark a consistent radius. Cut slowly and avoid sharp changes in direction.
Do not force the tool around the curve.
Mark the complete notch before cutting.
Check its location against clips, brackets, and fixture hardware.
Use a rotary tool or fine saw for small notches. Avoid narrow, sharp corners that may become future crack points.
Internal openings require starter holes.
Mark the full opening first. Drill suitable holes near the corners, then insert the cutting blade through one hole.
Use rounded internal corners where possible.
Tip: Create a reusable template when several panels need identical openings.
Correct measurement is more important than cutting speed.
An old diffuser may have changed shape through heat, age, or previous damage.
Measure the supporting frame directly.
Check the width and length at several points. Record any variation before deciding on the final size.
The panel needs enough overlap to rest securely in the fixture.
Do not cut it to the exact dimensions of the visible opening.
At the same time, leave enough clearance for installation and future removal.
Some fixtures use:
Spring clips
Metal tabs
Plastic channels
Hinged frames
Removable trim
These parts affect the required panel dimensions.
Measure their position and depth before marking the replacement panel.
For expensive material or unusual openings, create a cardboard template first.
Place the template inside the fixture. Check its fit and make corrections before transferring the dimensions to the final panel.
This step is useful for irregular ceiling grids and repeated commercial installations.
Insert the cut panel gently.
Check every corner and supporting edge. Do not force it into position.
Mark any tight area, remove the panel, and trim only a small amount.
Note: Store final measurements in the maintenance record for future replacement panels.
The most serious mistake is treating a complete LED fixture like a removable diffuser sheet.
Only cut a separate cover when the product design and supplier instructions allow it.
An old panel may be warped or incorrectly cut.
Measure the fixture opening before copying its dimensions.
A dull blade increases pressure and heat.
Replace worn utility blades and damaged saw blades before cutting.
Large teeth may catch thin plastic and break the edge.
Choose a fine-tooth blade designed for plastic or laminate.
Unsupported plastic vibrates and bends.
Keep the main panel flat against the workbench throughout the cut.
One heavy pass may cause the blade to move away from the guide.
Use repeated light strokes instead.
Extra feed pressure creates vibration, roughness, and heat.
Guide the panel steadily and let the blade perform the cut.
Wear safety glasses when scoring, snapping, drilling, or sawing.
Use cut-resistant gloves when handling finished edges. Keep hands outside the cutting path.
Control plastic fragments and clean the work area before reinstalling the diffuser.
Tip: Commercial installers should include diffuser cutting procedures in site safety training.
Learning how to cut ceiling light panels begins with identifying the correct component.
A removable acrylic or plastic diffuser may often be cut to size. A complete LED Ceiling Panel Light should not be cut or structurally modified.
For thin acrylic panels, score-and-snap cutting is usually the simplest method. It produces a straight edge without sawdust or significant heat.
Use a fine-tooth saw for thicker material. Choose a scroll saw or rotary tool for curves, notches, and internal openings.
For every method:
Measure the fixture carefully
Support the complete panel
Use a sharp tool
Apply controlled pressure
Prevent excessive heat
Test-fit before final finishing
For commercial projects, ordering the correct finished dimensions may be more efficient than modifying products on site.

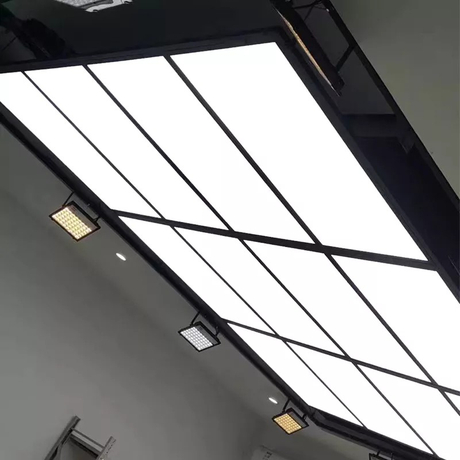

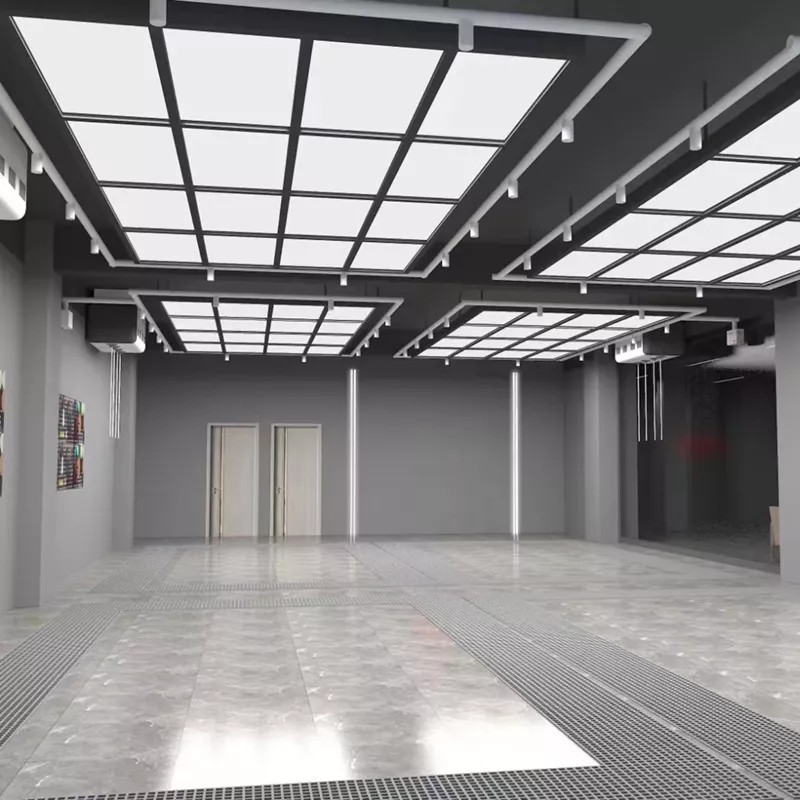

Businesses can review Contation LED’s Ceiling Panel Light range for garage, car wash, workshop, and commercial lighting applications. Buyers with non-standard projects can also review its custom lighting solutions and confirm available dimensions, specifications, and production options with the technical team.
Measure the fixture opening first. Mark the panel using a straightedge, score the smooth surface several times, and snap it along the groove. This method is suitable for many thin acrylic replacement panels.
No. Do not cut the frame, LED board, driver, wiring, light guide plate, or other integrated parts of a complete Ceiling Panel Light. Only trim a removable plastic diffuser when the manufacturer allows it.
An acrylic scoring tool is usually best for thin panels and straight cuts. A sharp utility knife is a practical alternative. Use a fine-tooth saw for thicker panels and a scroll saw for curves.
Support the full panel, use a sharp tool, and make repeated light scoring passes. Avoid excessive pressure. When using a saw, select a fine-tooth blade and control heat buildup.
Measure the actual fixture rather than copying a damaged panel. Transfer the measurements to the smooth surface, secure a straightedge, score the line, and snap the panel carefully.
Protect the patterned surface and mark the smooth side whenever possible. Use a scoring tool for thin straight cuts. Test an offcut first because surface patterns and material thickness may affect the result.
Yes, a sharp utility knife can score many thin plastic panels. Use a metal straightedge and several controlled passes. Do not try to cut through the material in one pass.
Disconnect the power, remove the cover, and place it on a flat workbench. Wear eye protection, support the panel fully, and keep your hands away from the cutting path.
Cutting standard replacement panels may cost less for a small repair. For bulk projects, custom-sized products may reduce waste, labor, breakage, and installation errors. Compare the full project cost before deciding.
Not always. Acrylic is more likely to crack during bending, while polycarbonate may respond differently to scoring and sawing. Confirm the material and follow the supplier’s cutting guidance.
