Choosing the right Car Garage Light setup can feel overwhelming when you are staring at a massive commercial space with 20-foot ceilings. The debate usually boils down to two heavyweights: the UFO High Bay and the Linear Shop Light. Both promise to transform a dark, cavernous room into a productive workspace, but they do so in very different ways. For a large commercial garage, the decision impacts more than just visibility; it affects energy bills, installation costs, and worker safety.
In this guide, we break down the technical differences between these two LED powerhouses. We will look at light distribution patterns, mounting height requirements, and which specific tasks—like engine repair or aesthetic detailing—benefit from each style. Our goal is to provide an expert-level comparison so you can invest in an Ultra bright LED system that serves your garage for the next decade.
The UFO high bay is the modern evolution of the old, bulky metal halide lamps. It gets its name from its circular, disc-like shape. In a commercial Car Garage Light application, it serves as a concentrated powerhouse of illumination. Because it uses a single, powerful LED array, it can punch through high ceilings to reach the floor without losing intensity.
The circular design isn't just for looks; it is an engineering choice. By arranging Bright LED chips in a circle, the heat is dissipated evenly across the aluminum housing. This prevents the "hot spots" that often shorten the life of cheaper fixtures. For a garage owner, this means less time on a ladder replacing bulbs. It is a set-it-and-forget-it solution that provides a massive amount of lumens from a relatively small footprint.
UFO lights are designed for height. They usually feature a 120-degree beam angle, though you can find narrower options for targeted light. If your commercial garage has ceilings higher than 15 feet, the UFO LED is often the superior choice. It creates a "cone" of light that overlaps with neighboring fixtures to provide a seamless, Ultra bright LED environment.
Linear shop lights are the long, rectangular fixtures that many people associate with traditional fluorescent tubes. However, the modern LED versions are worlds apart from their buzzing ancestors. In a large garage, these fixtures offer a different kind of coverage that focuses on length rather than a single point of intensity.
Because the light source is spread across a four-foot or eight-foot bar, linear lights are excellent at reducing harsh shadows. This makes them a popular Car Garage Light choice for bays where mechanics are working under hoods or around vehicle sides. The elongated shape mimics the silhouette of the cars themselves, providing even illumination along the entire length of a vehicle.
While UFOs dominate the high peaks, linear lights excel in the 10-to-15-foot range. They can be daisy-chained together to create continuous runs of light. This is particularly useful for assembly lines or long rows of parking. Many modern linear units are also Dimmable, allowing you to turn down the brightness during off-hours to save on electricity without plunging the facility into total darkness.
The most significant difference between these two systems is how they throw light. Understanding "photometrics" helps you avoid "zebra stripes"—the annoying alternating patterns of bright and dark spots on your shop floor.
A UFO fixture creates a circular footprint. To cover a rectangular garage bay, you need to calculate the overlap of these circles carefully. If they are too far apart, the corners of your workspace will be dim. Conversely, linear lights create a rectangular footprint. This makes it much easier to plan a layout for a standard-shaped garage. You simply line them up with the workspace, ensuring the Bright LED output covers the specific areas where the most intense labor happens.
In a commercial garage, you aren't just looking at the floor; you are looking at the sides of trucks and the insides of engine bays. UFO lights provide excellent horizontal illumination (the floor). However, linear lights often provide better vertical illumination because the light comes from a wider variety of angles. This wrap-around effect is crucial for a Car Garage Light system intended for high-stakes mechanical work.
When your ceilings exceed 20 feet, the "inverse square law" of light becomes your biggest enemy. This law states that light intensity decreases rapidly as the distance from the source increases. UFO high bays are engineered specifically to combat this phenomenon.
To get an Ultra bright LED effect on the floor from 25 feet up, you need a fixture with a high "luminous flux." UFO lights pack more power into a smaller area, allowing the light to "throw" further. Using a linear light at that height would result in "soft" light that feels dim by the time it reaches the ground. For high-ceiling garages, the UFO is the only way to ensure your technicians have the visibility they need for precision work.
Installing twenty UFO lights is often faster than installing forty linear fixtures to get the same total lumen count. In a large commercial space, labor costs for electricians add up quickly. UFO lights usually mount via a single hook or a pendant, making them much faster to hang. Since they have fewer points of failure and superior heat sinks, they are the Durable choice for owners who don't want to rent a scissor lift every year for maintenance.
If your commercial garage focuses on paint correction, wrapping, or high-end mechanical repairs, the quality of light matters more than the raw volume. This is where the linear Car Garage Light shines, specifically for its ability to show defects.
UFO lights, being "point sources," can create intense glare or "hot spots" on a car's clear coat. This makes it hard to see fine scratches. Linear lights spread the LED output, creating a soft glow that reflects evenly off the vehicle's body. For professional detailing, this even light is non-negotiable. It allows the detailer to see the true condition of the paint from every angle without being blinded by a single bright reflection.

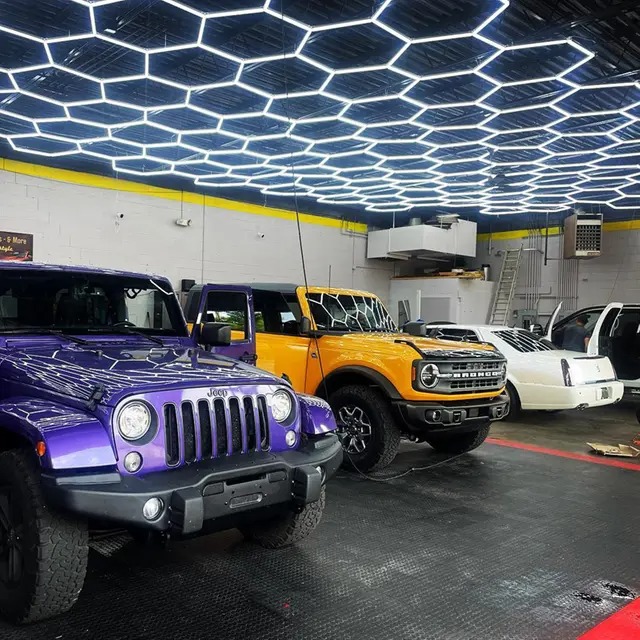

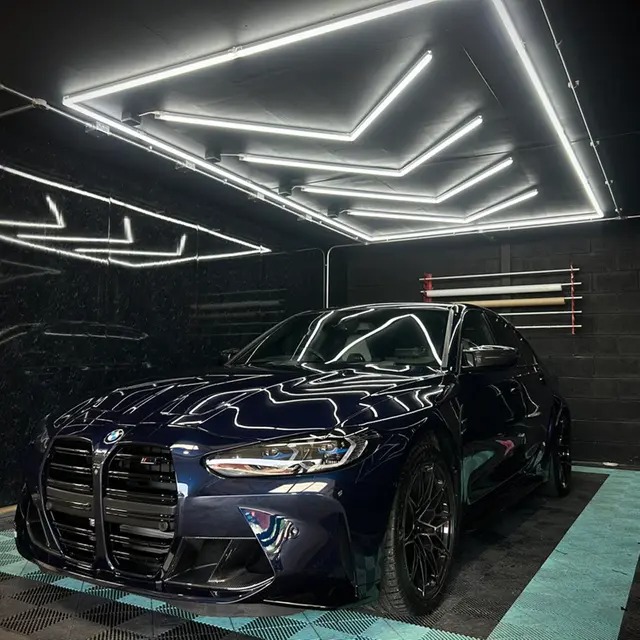

Many high-end shops are moving toward Polygonal LED or honeycomb patterns. These are essentially interconnected linear lights. They create a "grid" of light that ensures no part of the car is in shadow. This Ultra bright LED setup is the gold standard for modern commercial garages that want to impress clients while providing a world-class workspace for their staff.
Both UFO and Linear fixtures are significantly more efficient than old HID or T12 bulbs. However, the way they use energy differs based on the layout of your garage.
In a high-ceiling environment, a 240W UFO light might replace four 60W linear lights. While the total wattage is the same, the UFO might actually feel brighter because of its focused optics. For a Car Garage Light project, we recommend looking at the "Lumen per Watt" (lm/W) rating. A High-quality fixture should offer at least 130 lm/W.
Many commercial garages don't need 100% brightness all day. Both styles are available in Dimmable versions (usually 0-10V dimming). By integrating motion sensors with your LED fixtures, you can save up to 70% on energy. Imagine a 10-bay garage where only two bays are active; the lights in the inactive bays dim down to 10%, only snapping back to Ultra bright LED levels when a technician walks into the area.
Commercial garages are tough on electronics. They are dusty, humid, and often subject to temperature swings. Your Car Garage Light must be built to survive these conditions.
Dust Resistance: Look for an IP65 rating. This ensures that the fine dust from sanding or brake work doesn't penetrate the housing and coat the LED chips.
Impact Resistance: In a garage, things get bumped. UFO lights are compact and tough. Linear lights, being longer, are more prone to being hit by tall equipment or ladders. Many linear shop lights now come with wire guards to protect the Bright LED tubes.
Chemical Exposure: Ensure the lens material (usually polycarbonate) won't yellow or crack when exposed to oil vapors or cleaning chemicals common in automotive environments.
| Feature | UFO High Bay | Linear Shop Light |
| Best Ceiling Height | 15ft - 30ft+ | 8ft - 15ft |
| Light Pattern | Circular / Concentrated | Rectangular / Diffused |
| Installation | Single point (Hook/Pendant) | Dual point (Chains/Surface) |
| Best Use Case | Storage, heavy mechanics | Detailing, low-bay repair |
| Visual Comfort | Can be high glare | Low glare / Even spread |
So, which is best for your large commercial garage? The answer often isn't "one or the other"—it is a combination of both.
Many savvy garage owners use a hybrid Car Garage Light strategy. They install UFO High Bays in the center aisles and high-ceiling storage areas for maximum Ultra bright LED coverage. Then, they install Linear LED fixtures directly over the workbenches and car lifts. This provides the punch needed for the general space while giving the mechanics the shadow-free, precision light required for detailed engine or bodywork.
If your garage is client-facing—like a high-end tuning shop—the look of the fixtures matters. UFO lights provide a modern, industrial "high-tech" look. Linear lights, especially when arranged in Polygonal LED patterns, create a sleek, futuristic vibe that tells customers your shop uses the latest technology.
Whether you choose the concentrated power of the UFO High Bay or the smooth, diffused coverage of Linear Shop Lights, upgrading your Car Garage Light system to LED is the best investment you can make for your business. It improves safety, reduces errors, and slashes operational costs. For high ceilings, go UFO. For precision work and lower bays, go Linear. By matching the fixture to the task, you create an environment where your team can perform at their peak.
Q: Are LED garage lights safe for detailing?
A: Yes, especially linear LED fixtures. They provide a broad light source that minimizes hot spots, making it much easier to see paint imperfections during detailing.
Q: How many lumens do I need for a commercial garage?
A: For general mechanical work, aim for 50 to 75 foot-candles on the work surface. For a 1,000 sq. ft. space, this usually translates to roughly 50,000 to 75,000 lumens of Ultra bright LED output.
Q: Can I replace my old metal halide UFOs with LED versions?
A: Absolutely. LED UFO High Bays are designed as direct replacements. They use about 60-70% less energy and provide an instant-on Bright LED light without the warm-up time of old bulbs.
